TYPHON NAGA 4.0 - 4 Ton Yanmar Diesel Mini Excavator with Steel Tracks, Enclosed A/C Cab and Zero Tail Swing

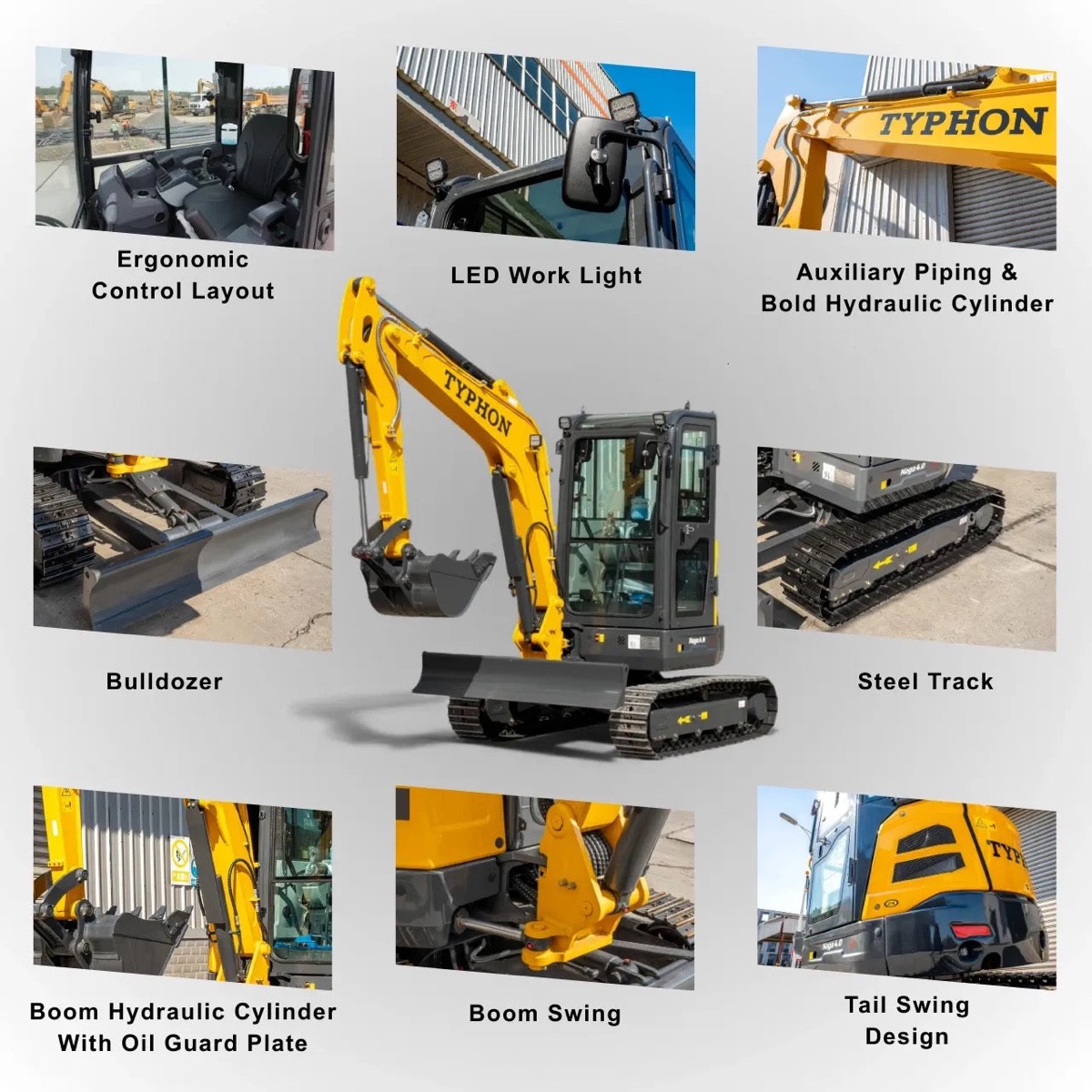

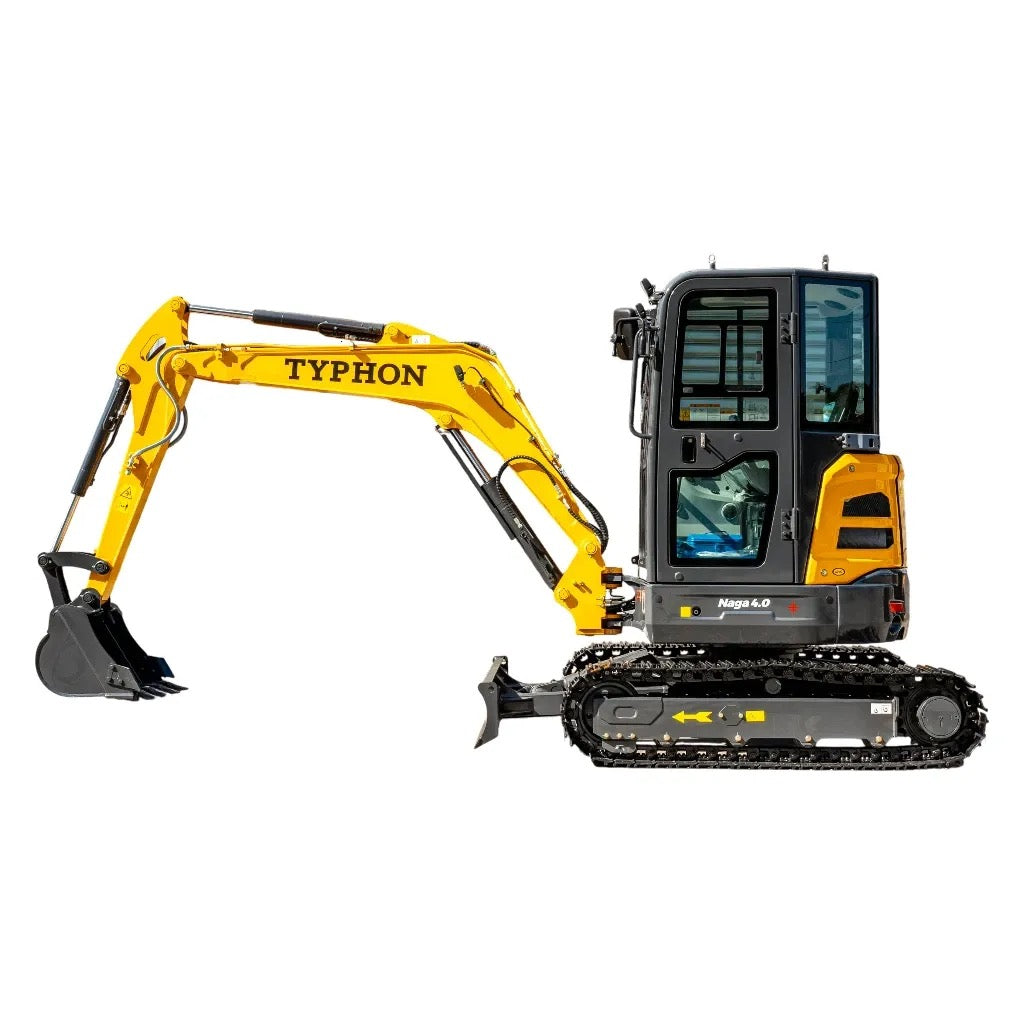

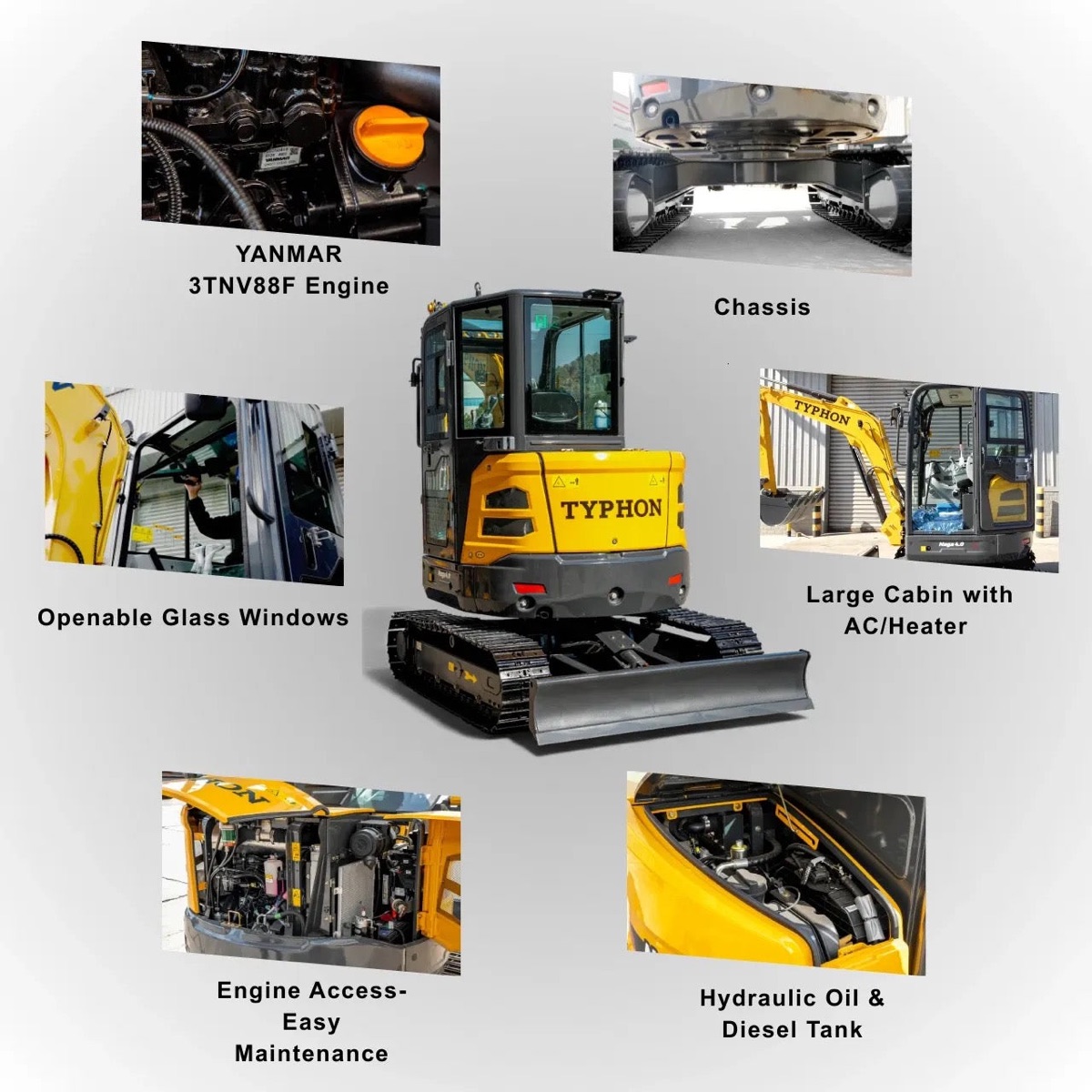

The TYPHON NAGA 4.0 is a 4 ton mini excavator built for the hardest version of every job: demolition, rock and daily commercial digging. It rides on heavy-duty steel tracks that outlast rubber in harsh conditions, swings its rear inside the track width with a zero tail swing design (860 mm tail swing radius, 360 degree rotation), and puts down a massive 30.4 kN bucket breakout force. Power comes from the world-renowned Yanmar 3TNV88F 3-cylinder diesel - 18.2 kW (24.4 HP) at 2,200 rpm, EPA Tier 4 Final and EU Stage V compliant.
- Steel tracks from the factory Demolition, rebar, rock and stump fields destroy rubber tracks. Steel shrugs them off and delivers better traction and service life.

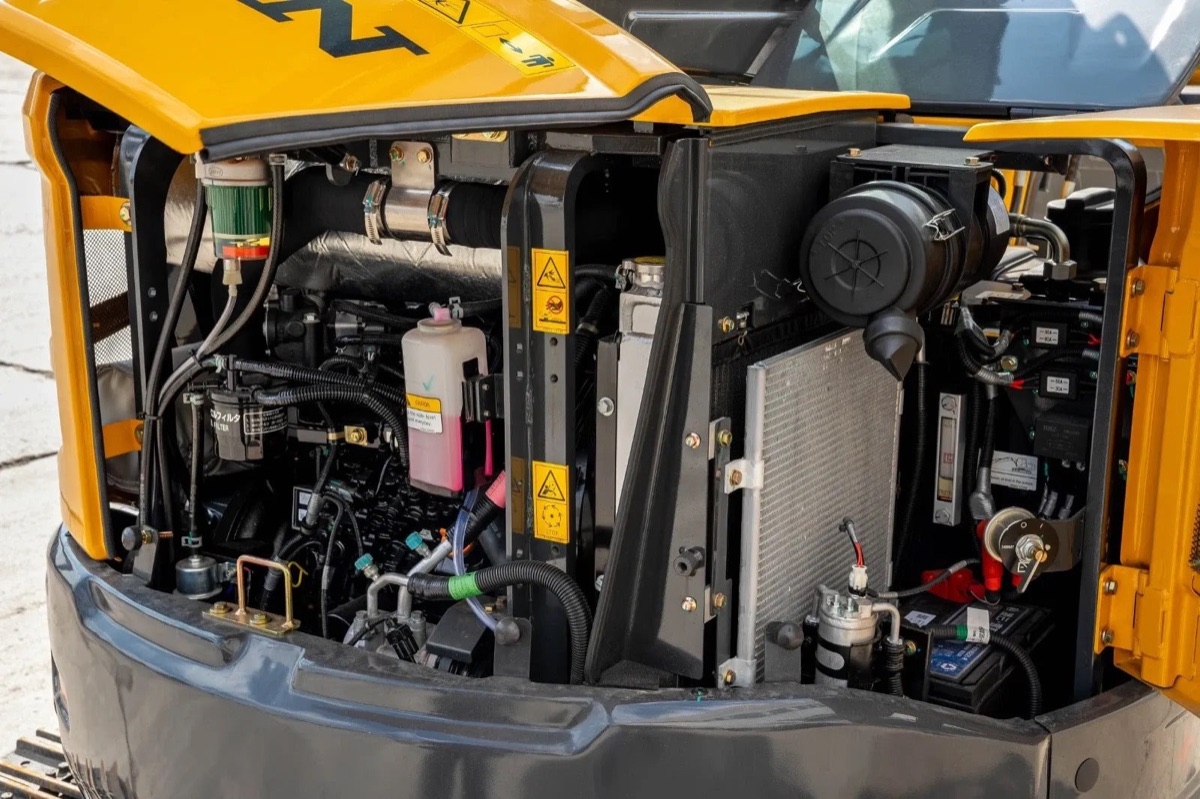

- Yanmar 3TNV88F diesel The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer.
- 30.4 kN bucket force Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it - real production digging in tough ground.

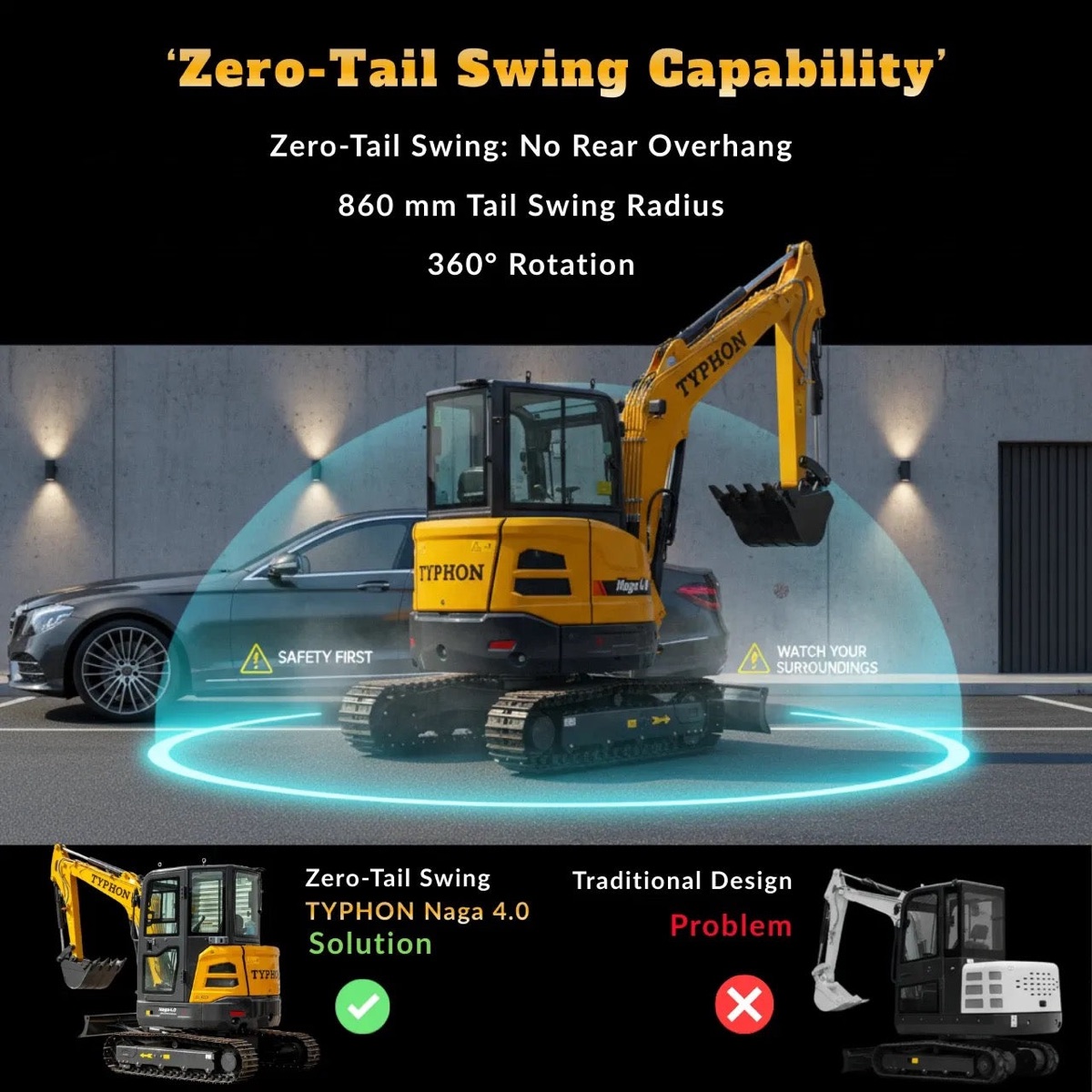

- Zero tail swing The rear stays inside the track width through a full 360 degree rotation - safe beside walls, houses and live traffic.

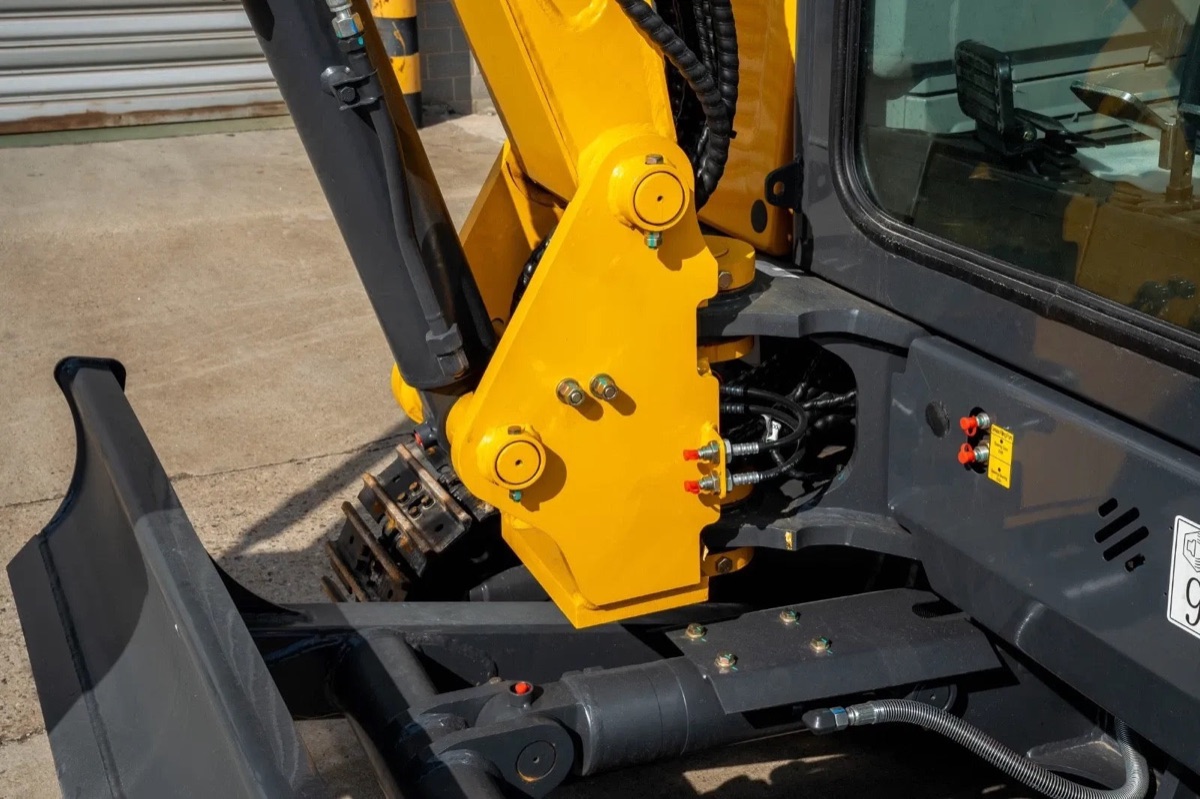

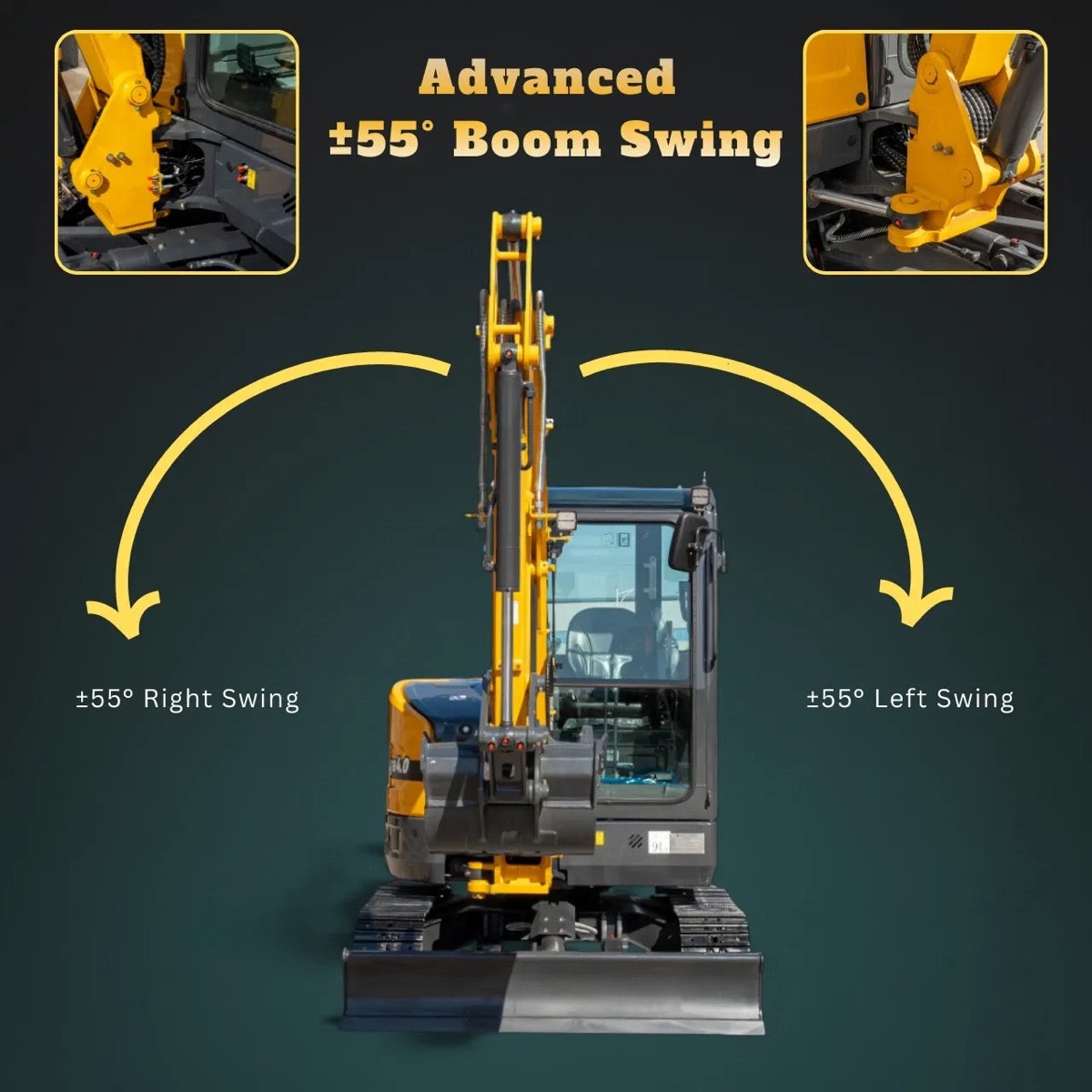

- 55 degree boom swing both ways Offset digging along foundations, fences and road edges without repositioning the tracks.

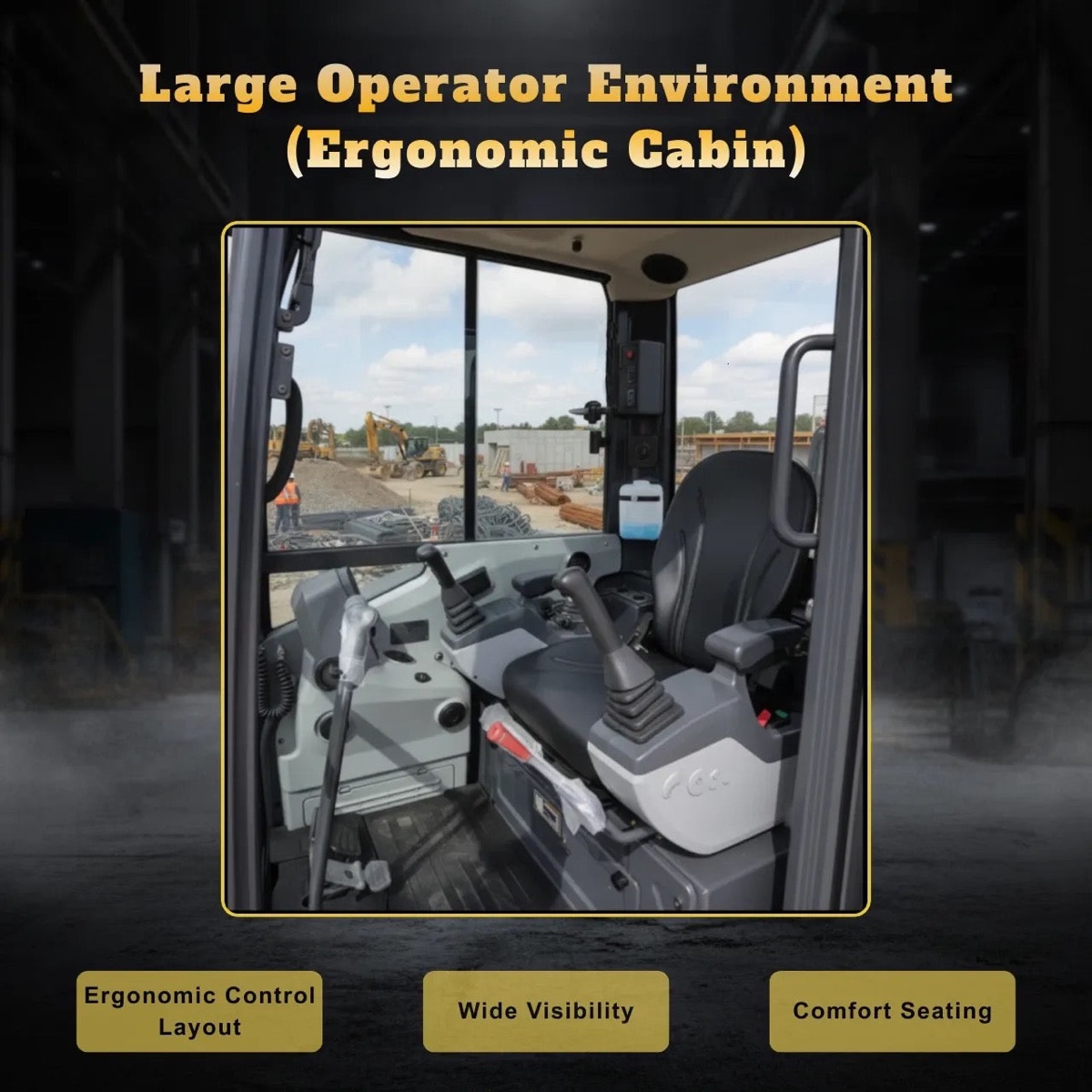

- Enclosed A/C and heater cab Openable front glass, suspension seat and low-effort pilot joysticks with ISO/SAE pattern selection for any operator.
- 7 inch smart touchscreen Engine data, hydraulic status, working hours, fault codes, maintenance reminders and control pattern selection in one display.
- Auxiliary hydraulics ready A 96.8 L/min circuit and three-way stop valve run breakers, augers and thumb attachments out of the crate.
CERTIFICATE
COMMERCIAL FACTORY AUDITED • SERIALIZED DOCUMENTATION INCLUDED IN CRATE
Steel tracks from the factory
Steel tracks from the factory: Demolition, rebar, rock and stump fields destroy rubber tracks. Steel shrugs them off and delivers better traction and service life. Yanmar 3TNV88F diesel: The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer.
30.4 kN bucket force
30.4 kN bucket force: Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it - real production digging in tough ground. Zero tail swing: The rear stays inside the track width through a full 360 degree rotation - safe beside walls, houses and live traffic.
55 degree boom swing both ways
55 degree boom swing both ways: Offset digging along foundations, fences and road edges without repositioning the tracks. Enclosed A/C and heater cab: Openable front glass, suspension seat and low-effort pilot joysticks with ISO/SAE pattern selection for any operator.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Class | 4.0 ton mini excavator |
|---|---|
| Overall dimensions | 4,880 mm L x 1,740 mm W x 2,550 mm H |
| Track type | Heavy-duty steel tracks |
| Track length / gauge | 2,155 mm / 1,440 mm |
| Tail swing | Zero tail swing design, 860 mm tail swing radius, 360 degree rotation |
| Gradeability | 30 degrees |
| Bucket digging force | 30.4 kN |
| Arm digging force | 18.2 kN |
| Bucket | 0.12 m3 capacity, 650 mm width |
| Boom swing | 55 degrees left / 55 degrees right |
| Swing speed | 0 - 9 rpm |
| Travel speed | 2.4 / 4.4 km/h (2-speed) |

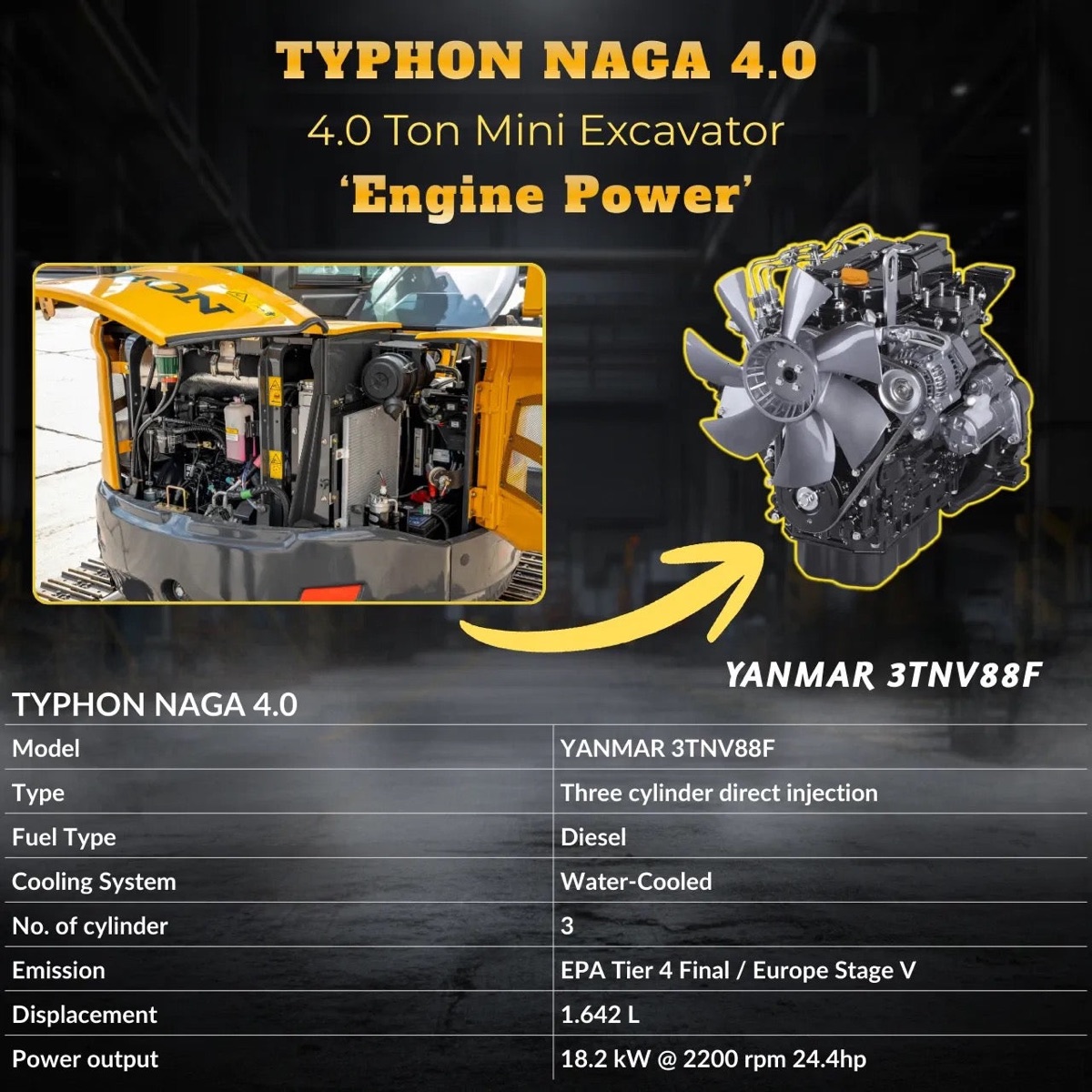

| Engine | Yanmar 3TNV88F, 3-cylinder direct-injection diesel, water-cooled |
| Rated power | 18.2 kW (24.4 HP) at 2,200 rpm |
| Displacement | 1.642 L |
| Emission standard | EPA Tier 4 Final and EU Stage V |
| Fuel tank | 50 L |
| Engine oil | 6.7 L |
| Main pump | Plunger pump |
| Auxiliary circuit | 96.8 L/min standard, three-way stop valve for added functions |
| Hydraulic oil tank | 40 L |
| Cab | Enclosed cab with air conditioning and heater, openable front glass window |
| Controls | ISO/SAE selectable pilot joysticks, suspension seat |
| Monitoring | 7 inch touchscreen: engine data, hydraulics, hours, fault codes, maintenance reminders |
| Safety and lighting | LED work lights, LED alarms, mirrors, fire extinguisher, window-break tool |
What’s included
These come with the machine.
- ✓ Brand-new TYPHON NAGA 4.0 4 ton mini excavator with enclosed A/C and heater cab
- ✓ Yanmar 3TNV88F 3-cylinder direct-injection diesel, 18.2 kW (24.4 HP), EPA Tier 4 Final / EU Stage V
- ✓ Heavy-duty steel tracks and dozer/trenching blade (fitted)
- ✓ 0.12 m3 / 650 mm standard digging bucket
- ✓ Auxiliary hydraulic circuit (96.8 L/min) with three-way stop valve for breakers, augers and thumbs
- ✓ 7 inch touchscreen display, ISO/SAE selectable pilot controls, suspension seat
- ✓ LED work lights, mirrors, openable front glass window
- ✓ Tool box, fire extinguisher, window-break and seatbelt-cutter tool, digital manual
- ✓ Fully crated heavy-item freight preparation for U.S. delivery
