3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom
Why is this discounted 49%? Liquidated from canceled commercial contractor freight consignments at our Dallas regional depot. 100% factory brand-new sealed in steel transit frame with 0.0 operating hours.
- 1-year commercial warranty
- 30-day returns
- Free delivery
-
✓
Hydraulic Liftgate Delivery: Carrier calls 24h ahead to schedule residential driveway or jobsite unloading.
-
✓
Official Crate Paperwork: Ships with EPA Tier 4 Final certificate & Manufacturer Certificate of Origin (MCO).
-
✓
Direct Specialist Support: Confirm pin dimensions, trailer weight, or live freight PRO tracking anytime.
3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom

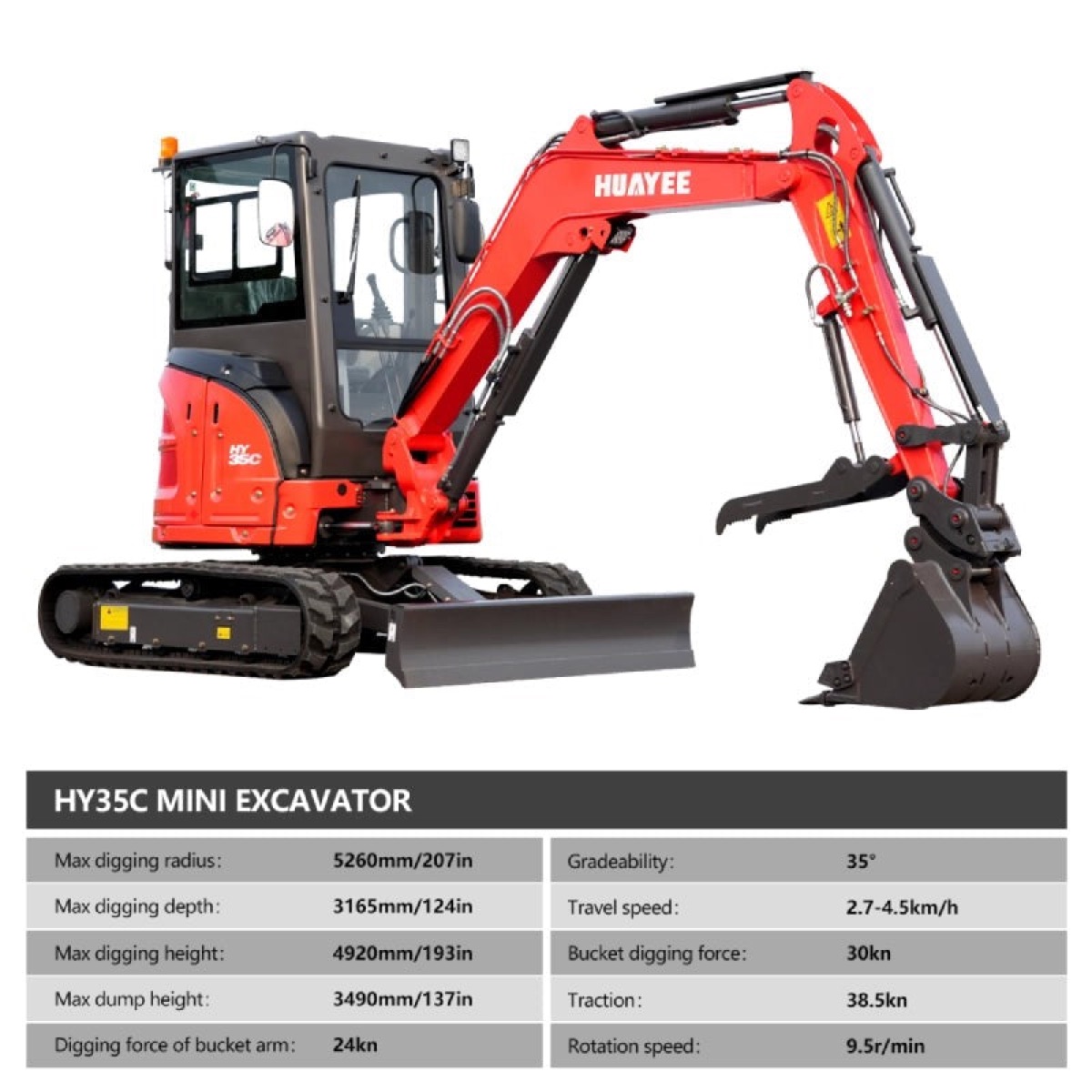

The full-cab 3.5 ton excavator at a price that used to buy a canopy machine. A 3,750 kg (8,268 lb) operating weight, a Yanmar 3TNV88F 24 HP direct-injection diesel (EPA Tier 4 Final), an enclosed cab with air conditioning and heat, a factory hydraulic thumb, a swing boom and 2-speed planetary travel motors make it a real production machine, not a hobby digger. Dig to 124 inches (3.17 m), reach 207 inches and dump into a truck bed from 137 inches, in any weather.
- Yanmar 3TNV88F diesel The same 3-cylinder engine used in name-brand 3-4 ton excavators. Parts and filters are stocked at any Yanmar dealer.
- 124 inch dig depth Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches.
- Hydraulic thumb from the factory Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
- Swing boom Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.
- Enclosed A/C and heat cab Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive.
- Hengli hydraulics, 99 L/min at 3,700 psi Piston pump and multi-function valve with enough flow for a breaker, auger or grapple.
- Rear-view camera and LED lights Back up safely on tight sites and keep digging after dark.
- Trailer-friendly Under 8,300 lb with a 12 inch track, so it moves on a 10,000 lb class equipment trailer behind a 3/4 ton pickup.
CERTIFICATE
COMMERCIAL FACTORY AUDITED • SERIALIZED DOCUMENTATION INCLUDED IN CRATE
Yanmar 3TNV88F diesel
Yanmar 3TNV88F diesel: The same 3-cylinder engine used in name-brand 3-4 ton excavators. Parts and filters are stocked at any Yanmar dealer. 124 inch dig depth: Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches.
Hydraulic thumb from the factory
Hydraulic thumb from the factory: Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later. Swing boom: Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.
Enclosed A/C and heat cab
Enclosed A/C and heat cab: Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive. Hengli hydraulics, 99 L/min at 3,700 psi: Piston pump and multi-function valve with enough flow for a breaker, auger or grapple.

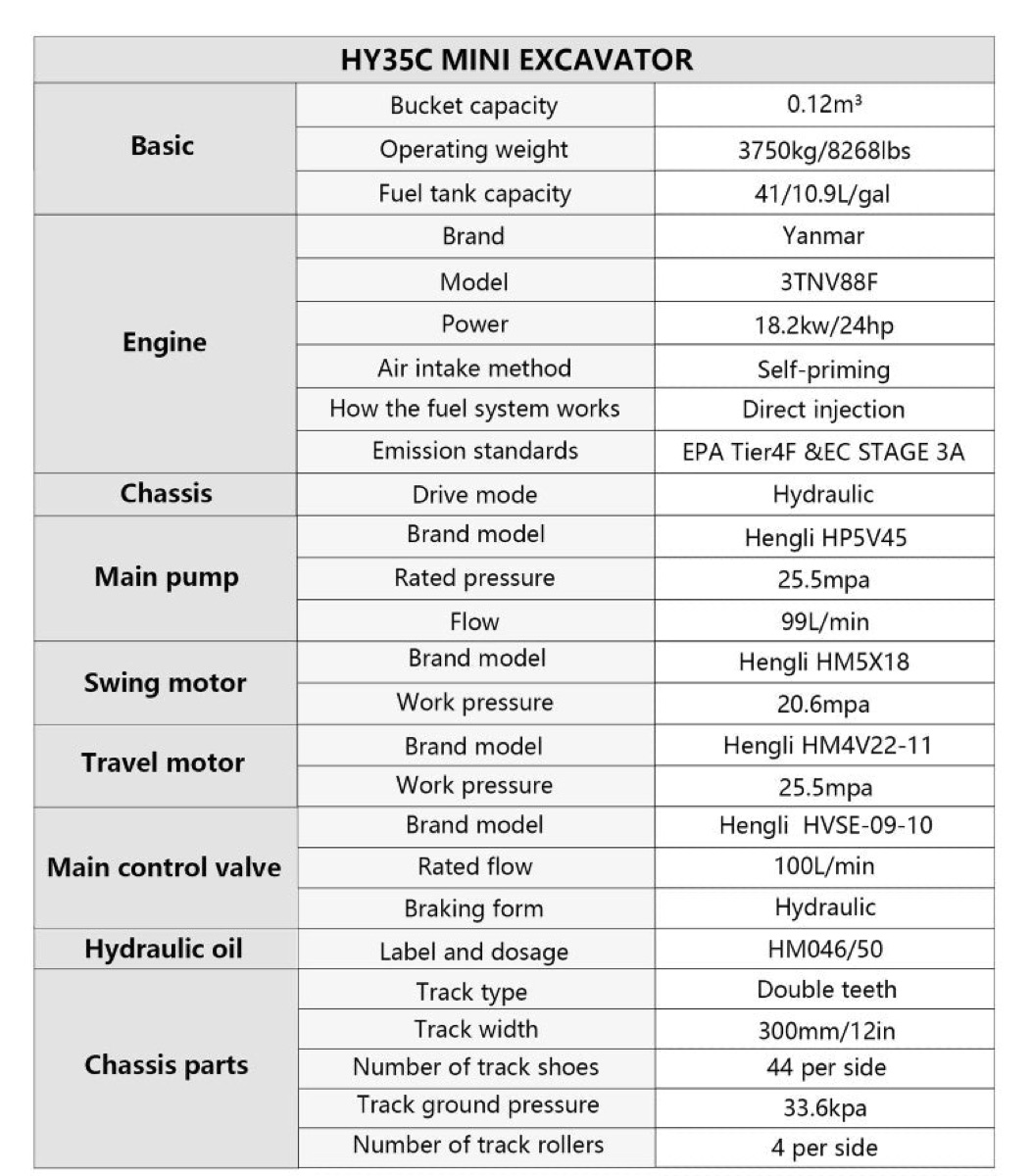

Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 3,750 kg (8,268 lb) |
|---|---|
| Bucket capacity | 0.12 m3 |
| Fuel tank capacity | 41 L (10.9 gal) |
| Track width | 300 mm (12 in), double-tooth rubber, 44 shoes and 4 rollers per side |
| Track ground pressure | 33.6 kPa |
| Max digging depth | 3,165 mm (124 in) |
| Max digging height | 4,920 mm (193 in) |
| Max dump height | 3,490 mm (137 in) |
| Max digging radius | 5,260 mm (207 in) |
| Bucket digging force | 30 kN |
| Arm digging force | 24 kN |
| Traction | 38.5 kN |
| Gradeability | 35 degrees |
| Travel speed | 2.7 / 4.5 km/h (2-speed) |
| Rotation speed | 9.5 rpm |
| Engine | Yanmar 3TNV88F, 3-cylinder direct-injection diesel |
| Rated power | 18.2 kW (24 HP) |
| Emission standard | EPA Tier 4 Final and EU Stage 3A |
| Fuel system | Direct injection, self-priming |
| Main pump | Hengli HP5V45 piston pump, 99 L/min, 25.5 MPa (3,700 psi) |
| Main control valve | Hengli HVSE-09-10, 100 L/min, hydraulic braking |
| Swing motor | Hengli HM5X18, 20.6 MPa |
| Travel motors | Hengli HM4V22-11, 25.5 MPa, 2-speed planetary |
| Hydraulic oil | HM046 / 50 L |

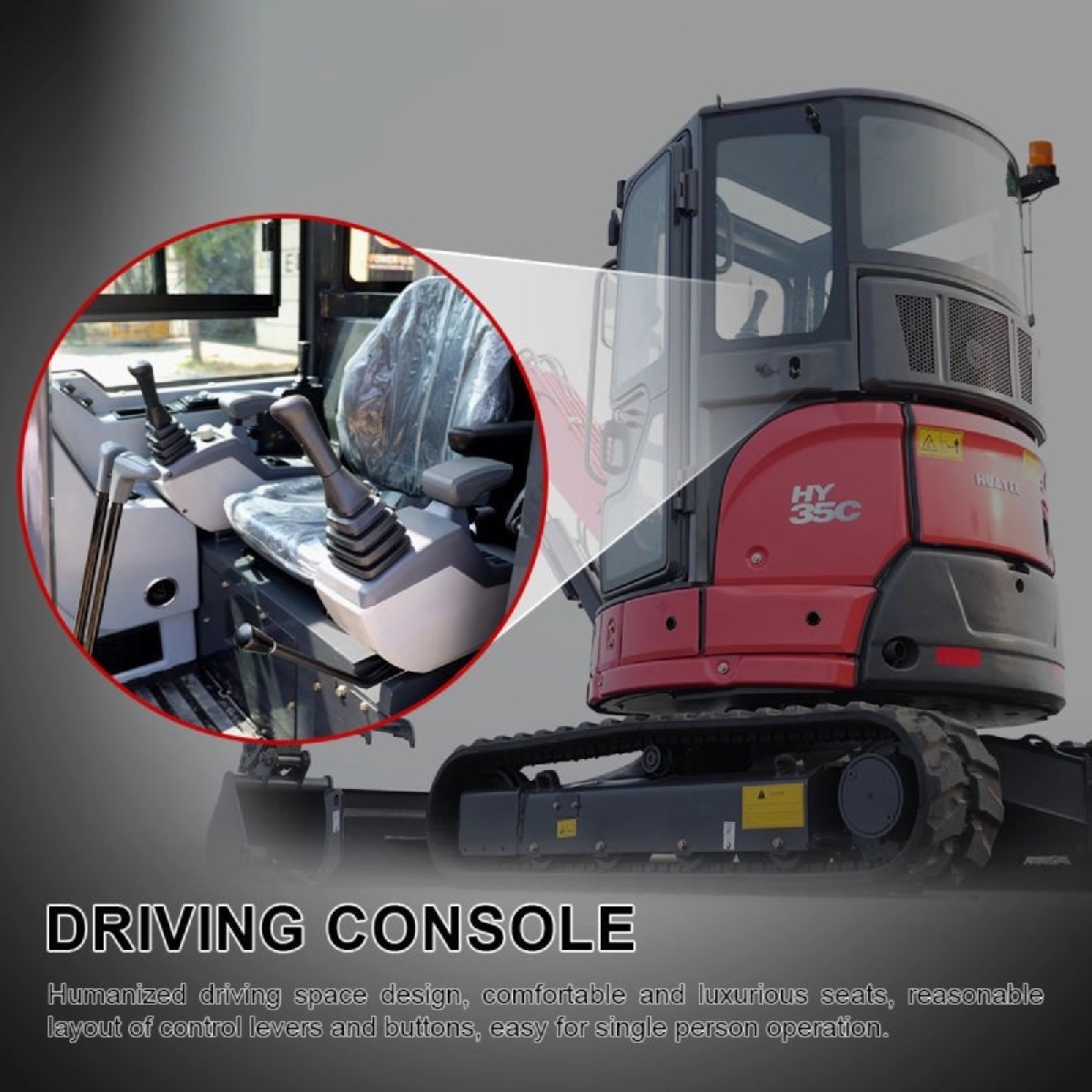

| Cab | Enclosed FOPS cab, air conditioning and heat, suspension seat, USB radio, wiper and washer |
| Controls | Hydraulic pilot joysticks, 2-speed travel, hydraulic oil cooler with fan |
| Safety and lighting | Rear-view camera with 7 in LCD, LED work lights, beacon light, mirrors |
| Attachments | Hydraulic thumb, 600 mm bucket, dozer blade, auxiliary lines with quick-connect |
What’s included
These come with the machine.
- ✓ Brand-new IronPeak Titan 3500 3.5 ton mini excavator, enclosed FOPS cab
- ✓ Yanmar 3TNV88F 24 HP diesel engine, EPA Tier 4 Final / EU Stage 3A
- ✓ Factory hydraulic thumb fitted to the arm
- ✓ 0.12 m3 (600 mm) standard digging bucket
- ✓ Air conditioning and heat, suspension seat, USB radio, LED work lights, beacon
- ✓ Rear-view camera with 7 inch LCD screen
- ✓ Hydraulic pilot controls with 2-speed planetary travel motors
- ✓ Dozer blade, 300 mm rubber tracks, auxiliary hydraulic lines with quick-connect
- ✓ Owner's manual, tool kit and a fully crated heavy-item freight preparation for U.S. delivery
Customer reviews
Reviews from 3.5 Ton Yanmar Diesel Mini Excavator owners.
Customer photos (2)
Unbelievable power and value for a real commercial Mini Excavator
Commercial freight delivery arrived directly to our ranch gate
Hydraulic breakout force and quick-attach setup are top tier
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usShipping and delivery
Free LTL freight to the contiguous 48 states, included in the price. Orders are dispatched within 2 business days and transit takes 6 - 9 business days. Delivery is curbside and the carrier calls ahead to book an appointment. A liftgate is available on request - email support@groundmark.us after ordering.
Returns
30 days to return an unused, uncrated machine. Return freight is at the buyer's cost. Warranty claims are handled separately from returns - see the Refund Policy.
Warranty and support
1-year limited warranty on materials and workmanship, plus lifetime technical support from our U.S.-based team. Full terms on the Warranty page.
Payment and financing
We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Shop Pay. Financing and pay-monthly options are available at checkout, subject to eligibility - see Financing.
Do I need a licence or a special trailer?
No licence is required to own or operate the machine on private property. At this weight you need a 10,000 lb class tandem-axle equipment trailer and a 3/4-ton or larger tow vehicle.
How do I track my order?
Use the Track Your Order page with the order number from your confirmation email.
When will it be back in stock?
It is unavailable right now. Send us a message from the contact page and we’ll email you when it’s back.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
