AGT H15 1.5-Ton Compact Mini Excavator
Why is this discounted 50%? Liquidated from canceled commercial contractor freight consignments at our Dallas regional depot. 100% factory brand-new sealed in steel transit frame with 0.0 operating hours.
- 1-year commercial warranty
- 30-day returns
- Free delivery
-
✓
Hydraulic Liftgate Delivery: Carrier calls 24h ahead to schedule residential driveway or jobsite unloading.
-
✓
Official Crate Paperwork: Ships with EPA Tier 4 Final certificate & Manufacturer Certificate of Origin (MCO).
-
✓
Direct Specialist Support: Confirm pin dimensions, trailer weight, or live freight PRO tracking anytime.

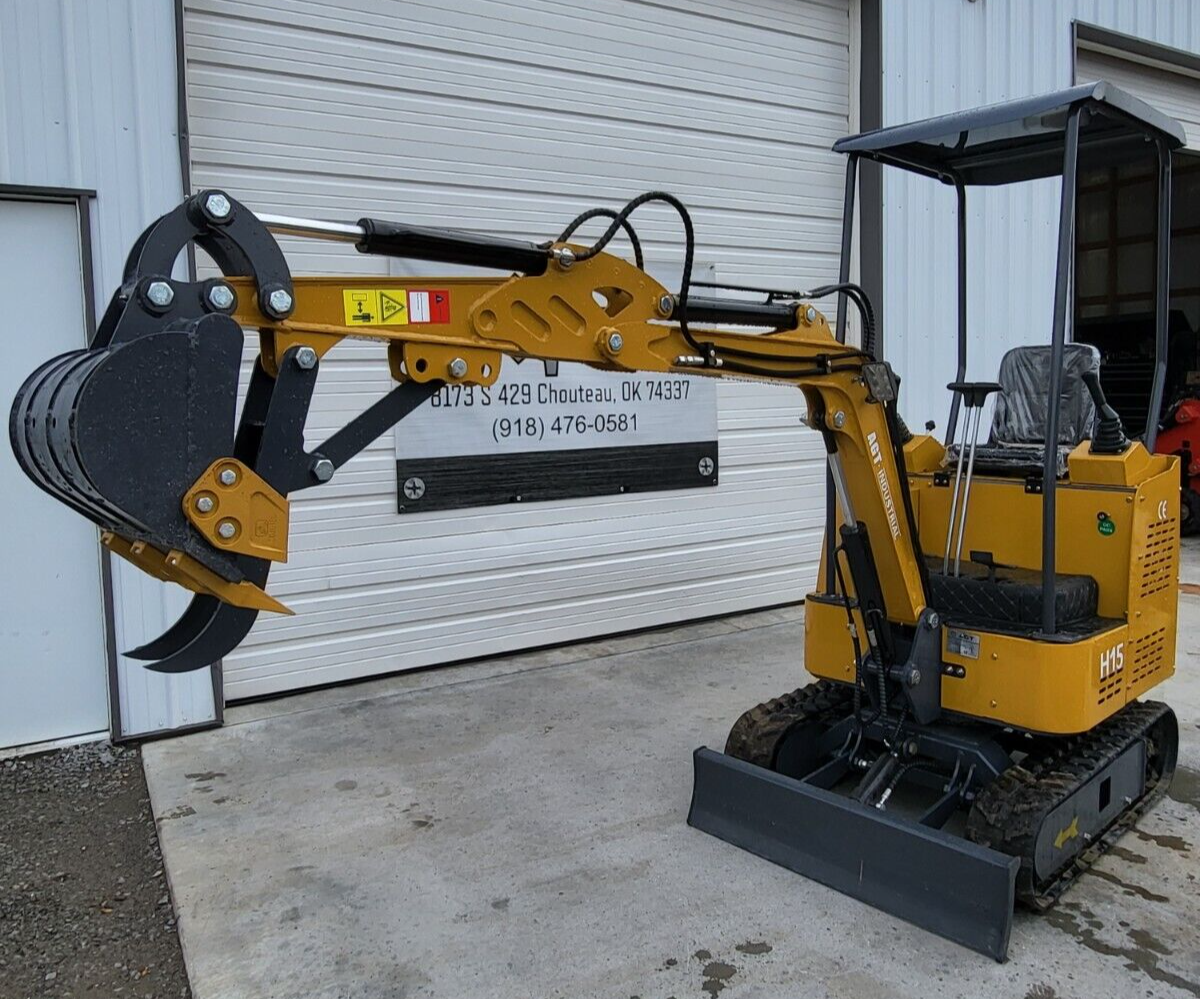

More reach and a canopy overhead.
The H15 digs to 65 inches with a 112.2-inch digging radius and a 72.83-inch unloading height for dropping spoil into a trailer. It comes with a digging bucket, a hydraulic thumb, a front dozer blade, and an overhead canopy.
- RATO R420D engine 13.5 HP gasoline, 3,600 RPM.
- Bucket and thumb included Ready to dig and grab on delivery.
- Climbs a 35% grade On rubber tracks.
CERTIFICATE
COMMERCIAL FACTORY AUDITED • SERIALIZED DOCUMENTATION INCLUDED IN CRATE
RATO R420D engine
RATO R420D engine: 13.5 HP gasoline, 3,600 RPM. Bucket and thumb included: Ready to dig and grab on delivery.
Climbs a 35% grade
Climbs a 35% grade: On rubber tracks.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Model | AGT H15 |
|---|---|
| Operating weight | 2,315 lb (1,050 kg) |
| Overall length | 84.25 in |
| Overall width | 39.37 in |
| Engine | RATO R420D gasoline |
| Power | 13.5 HP (8.6 kW) at 3,600 RPM |
| Fuel | 92 octane gasoline |
| Fuel tank | 7.08 qt |
| Engine oil | 1.16 qt |
| Max digging depth | 65 in |
| Max digging height | 102.76 in |
| Max digging radius | 112.2 in |
| Max unloading height | 72.83 in |
| Bucket capacity | 0.88 cu ft |
| Hydraulic tank | 19.02 qt |
| Rated pressure | 23.5 MPa / 18 MPa |
| Main pump flow | 6.2 GPM |
| Travel motor | BM6K-315 |
| Slewing motor | BM2-315 |
| Travel speed | 0–2.0 km/h |
| Climbing ability | 35% grade |
| Blade | Front dozer blade |
| Canopy | Overhead canopy |
| Undercarriage | Rubber tracks |
What’s included
These come with the machine.
- ✓ Digging bucket
- ✓ Hydraulic thumb
- ✓ Front dozer blade
- ✓ Overhead canopy
Customer reviews
Reviews from AGT H15 owners.
Customer photos (2)
Unbelievable power and value for a real commercial Mini Excavator
Commercial freight delivery arrived directly to our ranch gate
Hydraulic breakout force and quick-attach setup are top tier
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usHow much does the H15 weigh?
The operating weight is 2,315 lb (1,050 kg). Overall it is 84.25 inches long and 39.37 inches wide.
What engine does it use?
A RATO R420D gasoline engine rated at 13.5 HP (8.6 kW) at 3,600 RPM. It is specified for 92 octane fuel and has a 7.08 qt tank.
What comes with it?
A digging bucket and a hydraulic thumb, along with the front dozer blade and overhead canopy that are part of the machine.
When will it be back in stock?
It is unavailable right now. Send us a message from the contact page and we’ll email you when it’s back.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
